1100 Aluminum Alloy

1100 Aluminum Alloy
1100 Aluminum Alloy1100 aluminum sheet/plate 1100 Aluminum Alloy1100 aluminum coil

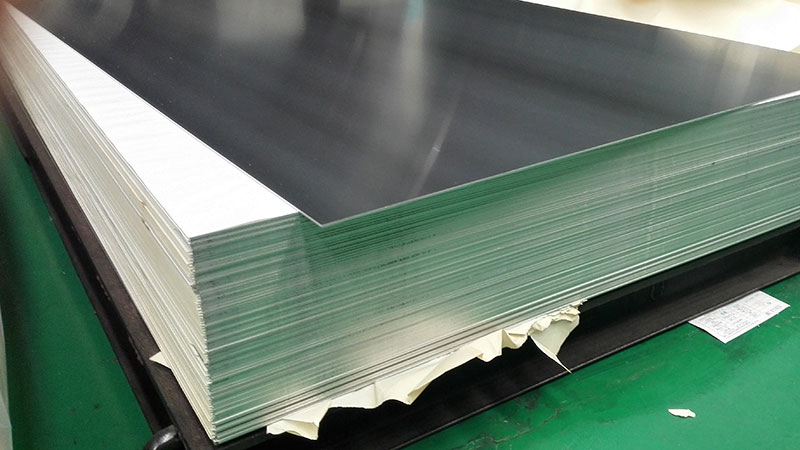

1100 aluminum sheets/plates
  • Thickness; 0.2-200mm
  • Width: 30-2500mm
  • Length: 500-13000mm

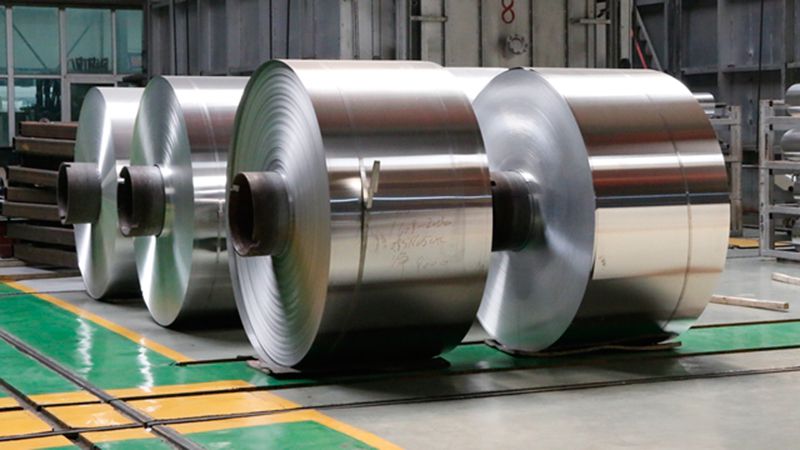

1100 aluminum coils
  • Thickness: 0.2-6.35mm
  • Width: 500-2500mm
Request a Quote

1100 aluminum is an aluminum-based alloy in the commercially pure wrought family. With a minimum of 99.0% aluminum, it is the most heavily alloyed of the 1000 series and the mechanically strongest alloy in this series. It can not be strengthened by heat treatment and keeps the benefit of good ductility, formability, weldability and corrosion resistance. In addition, after anodizing, its corrosion resistance can be further improved and a beautiful surface is obtained.

Application

1100 aluminum alloy is commonly used for HVAC, heat shield, deep drawn applications, cosmetic bottle cap, heat exchanger fins, spun hollowware, dials and name plates, decorative parts, giftware, cooking utensils, rivets and reflectors, and sheet metal work.

Aluminum alloy state, size and mechanical properties
Alloy Temper Thickness (mm) Tensile strength (Mpa) Elongation (%)
Chinese standard Value
1100 O >0.2-0.5 75-105 75-110 ≥20
>0.5-1.0 ≥25
>1.0-4.5 ≥30
H22 >0.2-0.5 95-130 100-125 ≥10
>0.5-1.0 ≥12
>1.0-4.5 ≥15
H24 >0.2-0.5 110-145 120-150 ≥6
>0.5-1.0 ≥8
>1.0-4.5 ≥10
H26 >0.2-0.5 ≥2
>0.5-1.0 ≥3
>1.0-4.5 ≥4
H18 >0.2-0.5 ≥150 ≥170 ≥1
>0.5-1.0 ≥2
>1.0-4.5 ≥3
H112 >4.5-6.5 ≥95 ≥95 ≥9
>6.5-12.5 ≥90 ≥90 ≥9
>12.5-50 ≥85 ≥85 ≥14
>50-80 ≥80 ≥80 ≥20
Chemical composition
Si + Fe 0.95
Cu 0.05-0.20
Zn 0.1
Mn 0.05
Al 99
Packaging
  • Packaging
  • Packaging

To pack the aluminum sheet/plate/coil, first of all, put a layer of plastic film with a thickness of no less than 0.08mm in the packing box, then a layer of EPE foam, the third layer of PE kraft paper, and finally put the desiccant.
