5052 Aluminum Alloy

5052 Aluminum Alloy
5052 Aluminum Alloy5052 aluminum sheet/plate 5052 Aluminum Alloy5052 aluminum coil

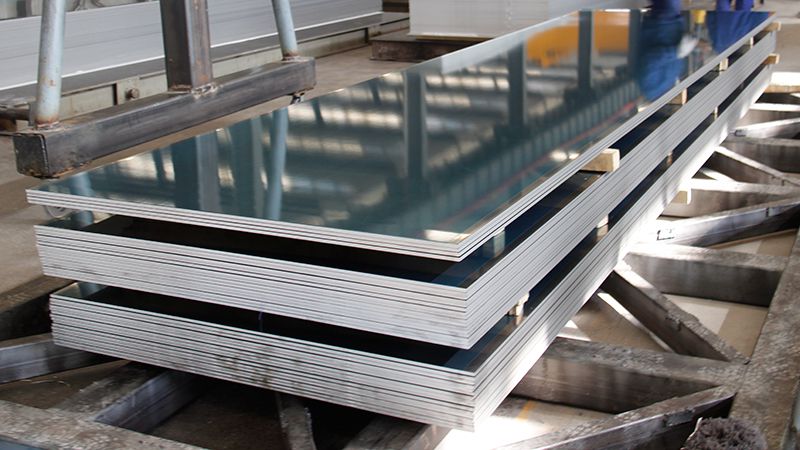

5052 aluminum sheets/plates available size range
  • Thickness: 0.2-200mm
  • Width: 30-2500mm
  • Length: 500-13000mm

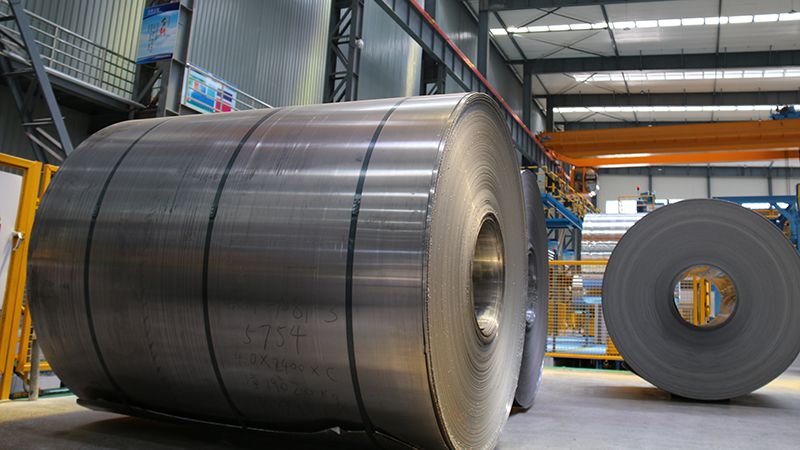

5052 aluminum coil available size range
  • Thickness: 0.2-6.35mm
  • Width: 500-2500mm
Request a Quote
Application

5052 aluminum alloy excels in the marine industry, electronics and chemical applications, including pressure vessels, marine equipment, electronic enclosures and chassis, hydraulic tubes, medical equipment, hardware signs, aircraft fuel tanks, fan blades, hinges, architectural fascias, etc.

Aluminum alloy state, size and mechanical properties
Alloy Temper Thickness (mm) Tensile strength (Mpa) Elongation (%)
Chinese standard Value
5052 O >0.5-1.3 170-215 175-215 ≥15
>1.3-4.5 ≥18
H22 H32 >0.5-1.3 210-260 215-245 ≥8
>1.3-4.5 ≥10
H24 H34 >0.5-1.3 230-280 235-265 ≥4
>1.3-4.5 ≥7
H26 H36 >0.5-1.3 250-300 255-290 ≥3
>1.3-4.5 ≥4
H18 H38 >0.5-1.3 ≥270 ≥280 ≥2
>1.3-4.5 ≥4
Packaging
  • Packaging
  • Packaging

To pack the aluminum sheet/plate/coil, first of all, put a layer of plastic film with a thickness of no less than 0.08mm in the packing box, then a layer of EPE foam, the third layer of PE kraft paper, and finally put the desiccant.
