5454/5154 Aluminum Alloy

5454/5154 Aluminum Alloy
5454/5154 Aluminum Alloy5454/5154 aluminum sheet/plate 5052 Aluminum Alloy5454/5154 aluminum coil

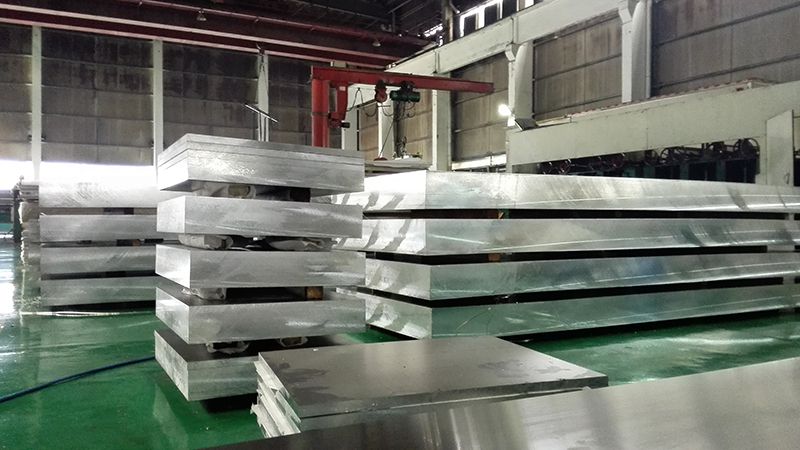

5454/5154 aluminum sheets/plates available size range
  • Thickness: 0.2-200mm
  • Width: 30-2500mm
  • Length: 500-13000mm

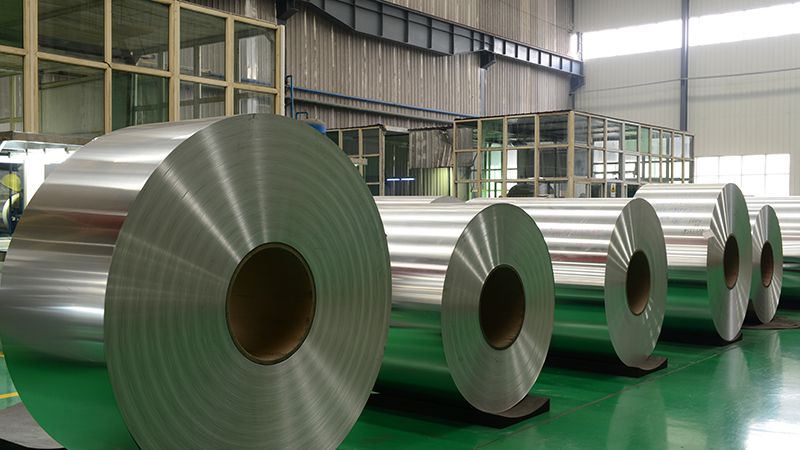

5454/5154 aluminum coil available size range
  • Thickness: 0.2-6.35mm
  • Width: 500-2500mm
Request a Quote
Application

5454/5154 aluminum alloy is widely used in the manufacture of welded structures, storage tanks, pressure vessels, truck dump bodies, tanker trucks, exhaust stacks, chemical handling tanks on vessels, marine & off-shore applications, etc.

Aluminum alloy state, size and mechanical properties
Alloy Temper Thickness (mm) Tensile strength (Mpa) Elongation (%)
Chinese standard Value
5454、5154 O H111 >0.20-0.50 215-275 215-275 ≥12
>0.5-1.50 ≥13
>1.5-3.0 ≥15
>3.0-6.0 ≥17
>6.0-12.50 ≥18
>12.5-50.0 -
H22 H32 >0.2-0.50 250-305 250-305 ≥5
>0.5-1.50 ≥6
>1.5-3.0 ≥7
>3.0-6.0 ≥8
H24 H34 >0.2-0.50 270-325 270-325 ≥4
>0.5-1.50 ≥5
>1.5-3.0 ≥6
>3.0-6.0 ≥7
H26 H36 >0.2-1.50 290-345 290-345 ≥3
>1.5-3.0 ≥4
>3.0-6.0 ≥5
H112 6.0-12.50 ≥220 ≥220 ≥8
>12.5-40.0 ≥215 ≥215 -
>40.0-120.0 -
Packaging
  • Packaging
  • Packaging

To pack the aluminum sheet/plate/coil, first of all, put a layer of plastic film with a thickness of no less than 0.08mm in the packing box, then a layer of EPE foam, the third layer of PE kraft paper, and finally put the desiccant.
